*Brand:Lubi.
*Country of Origin:India.
*Model:L6525- KP.
*Rated Power:25 HP – 18.5 kW.
*Voltage:380 V – Frequency: 50 Hz.
*Rated Current (Continuous):39.9 A.
*Speed:2860 rpm.
*Sized for installation in 6".

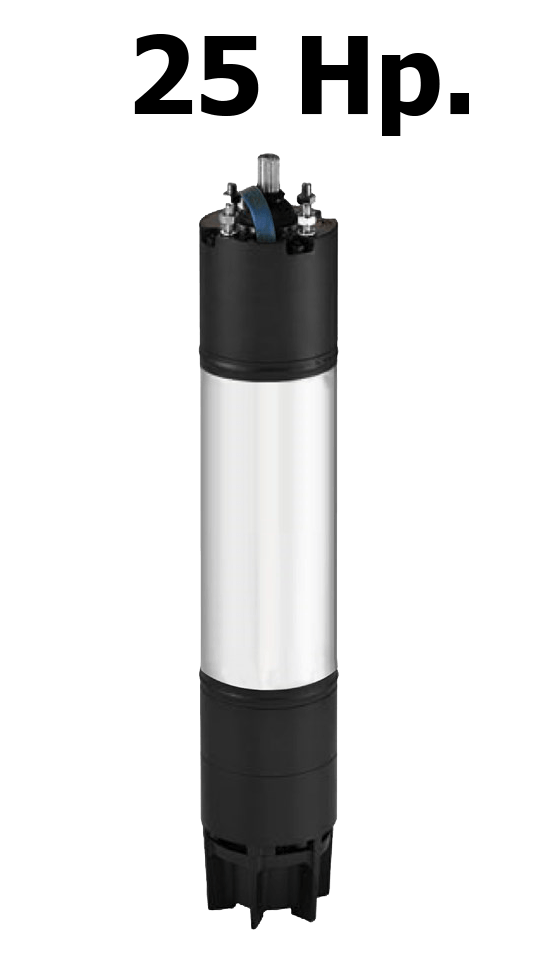

Technical Overview – Submersible Motor
A 4-inch rewindable submersible motor, designed for operation in deep wells, delivering high performance and long-term reliability. It features a corrosion-resistant stainless-steel construction and internal cooling and lubrication using a non-toxic fluid, making it suitable for drinking water and agricultural applications.
Key Technical Features
Rewindable Design:Allows local maintenance and repair, reducing long-term operating costs.
High Efficiency:Low power consumption with stable and reliable performance.
Effective Cooling & Lubrication:Utilizes a non-toxic fluid to extend service life.
Robust Construction:Stainless steel outer shell and shaft for superior corrosion resistance.
Mechanical Shaft Seal (Carbon/Ceramic):Prevents water ingress and enhances operational reliability.
High Thrust Capacity:Thrust bearing designed to withstand loads exceeding those generated by the pump.
High Protection Rating:IP68 protection for continuous underwater operation.
Flexible Installation:Suitable for both vertical and horizontal mounting.
Typical Applications
Deep water wells
Agricultural irrigation systems
Drinking water supply
Light to medium industrial applications
