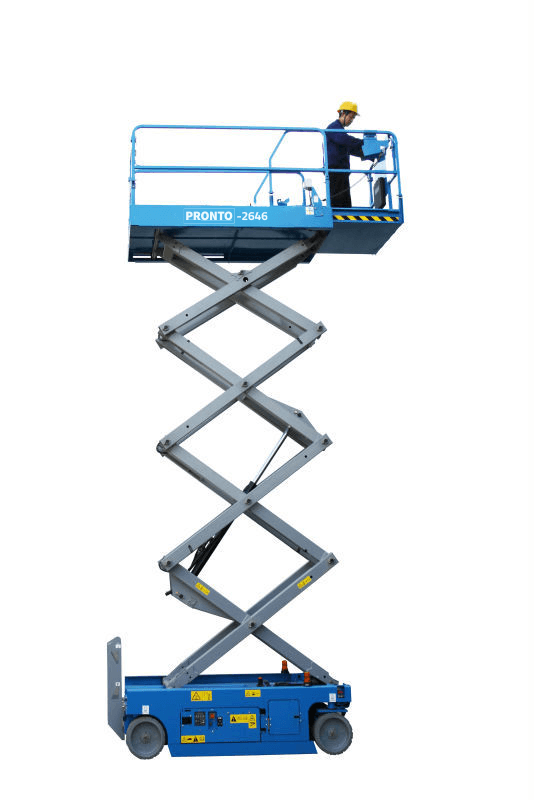

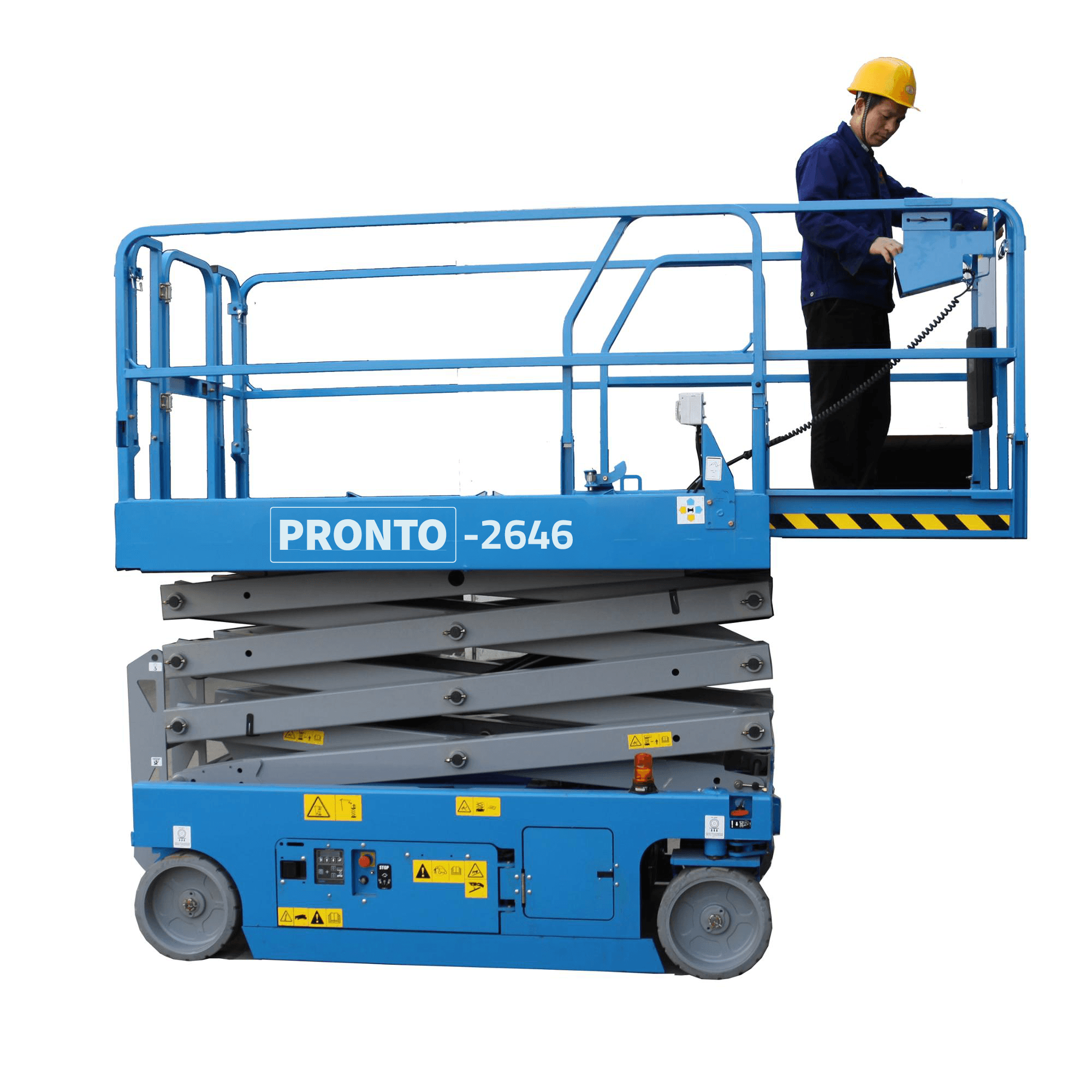

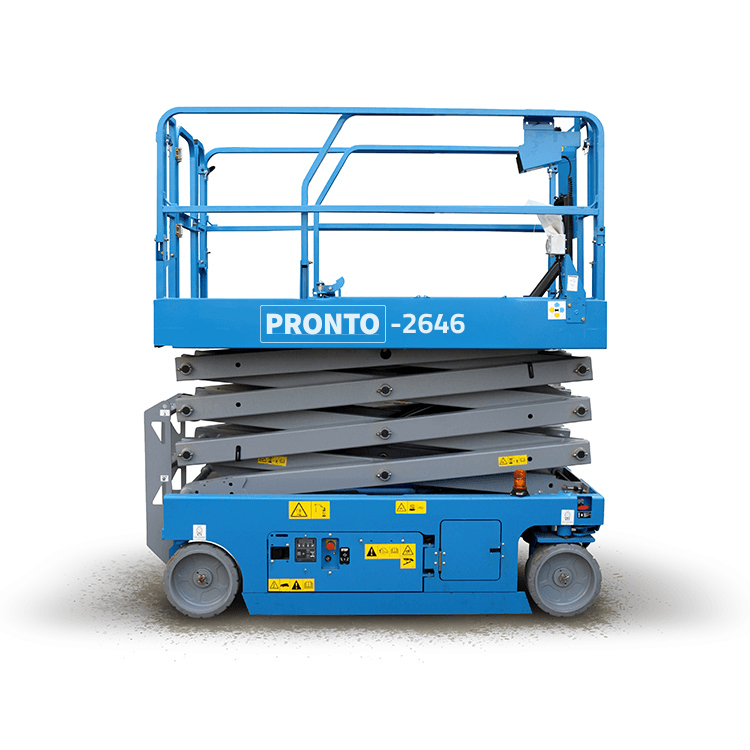

Model:2646
Brand:PRONTO
Working height maximum:9.8m
Platform length – outside:2.26m
Extended:3.18m
Slide-out platform extension deck:0.96m
Platform width – outside:1.15m
Toeboard height:0.15m
Height – stowed:2.26m
rails lowered:1.68m
Length – stowed:2.41m
platform extended:3.33m
Width:1.17m
Wheelbase:1.85m
Ground clearance – center:0.1
Maximum platform occupancy:2 person
Lift capacity:454kg
Extension deck capacity:136kg
Drive speed – stowed:3.5km/h
Drive speed – raised:0.8km/h
Gradeability – uphill stowed:30%
Turning radius – outside:2.29m
Raise/lower speed:30/38 second
Non-marking tires – rough terrain:38 x 13 x 28cm
Power source:48V DC (Four 6V batteries,225 Ah capacity)
Hydraulic system capacity:17L
Weight:2447kg
Features:
● Zero-emission electric operation.
● Front-wheel drive and zero inside turning radius.
● 39 in (1 m) roll-out platform extension .
● Folding rails with full-height swing gate.
● Universal 20 amp smart charger.
● Proportional controls for lift and drive functions.
● Multiple disc brakes provide smooth deceleration.
● On-board diagnostics for easy troubleshooting.
● Emergency stop at both platform and ground controls.
● Solid, non-marking tires.
● Manual platform lowering valve.
● Tilt sensor with an audible alarm.
