•Brand: IZ Fog.
•Model: IZ-400.

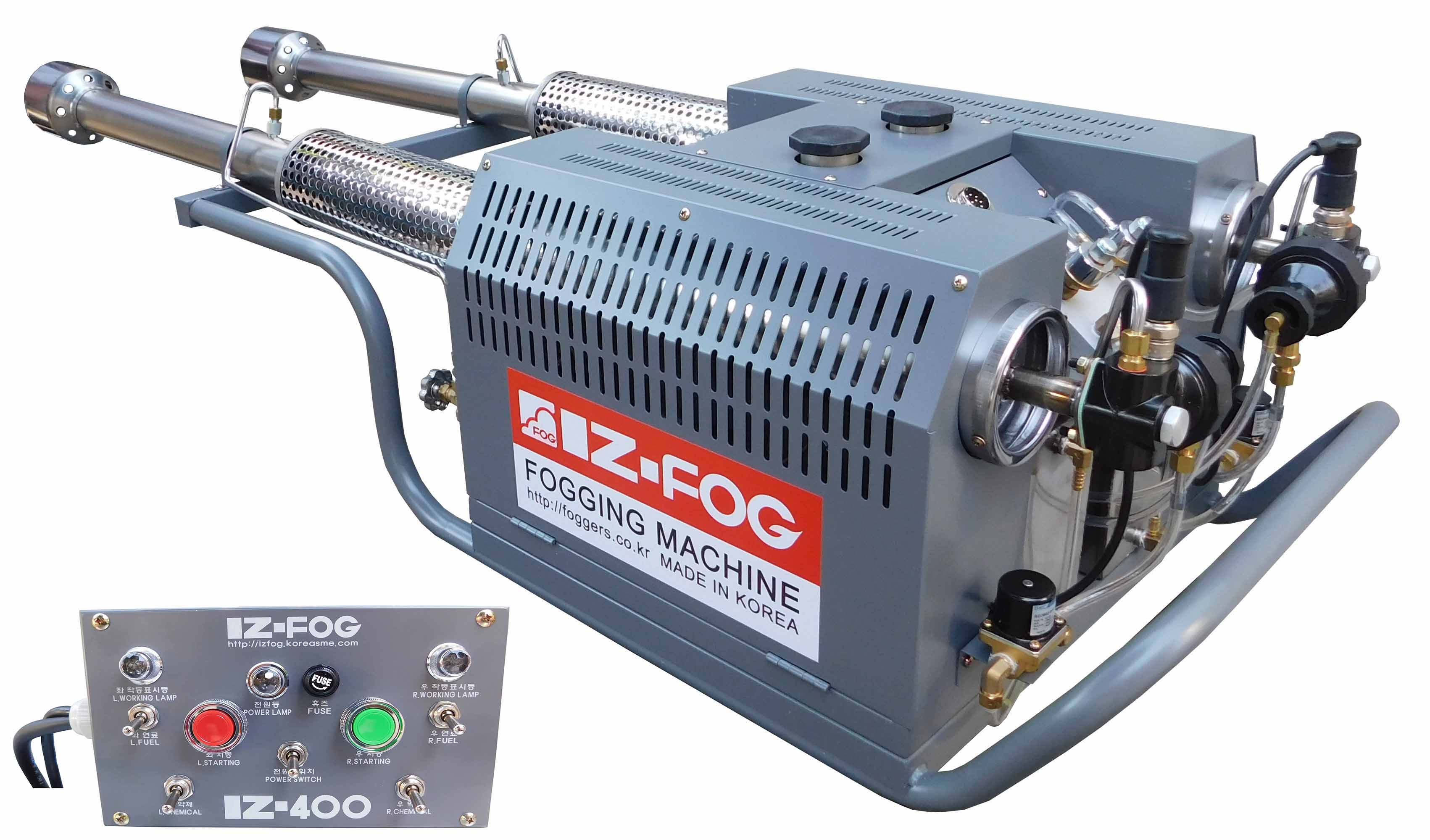

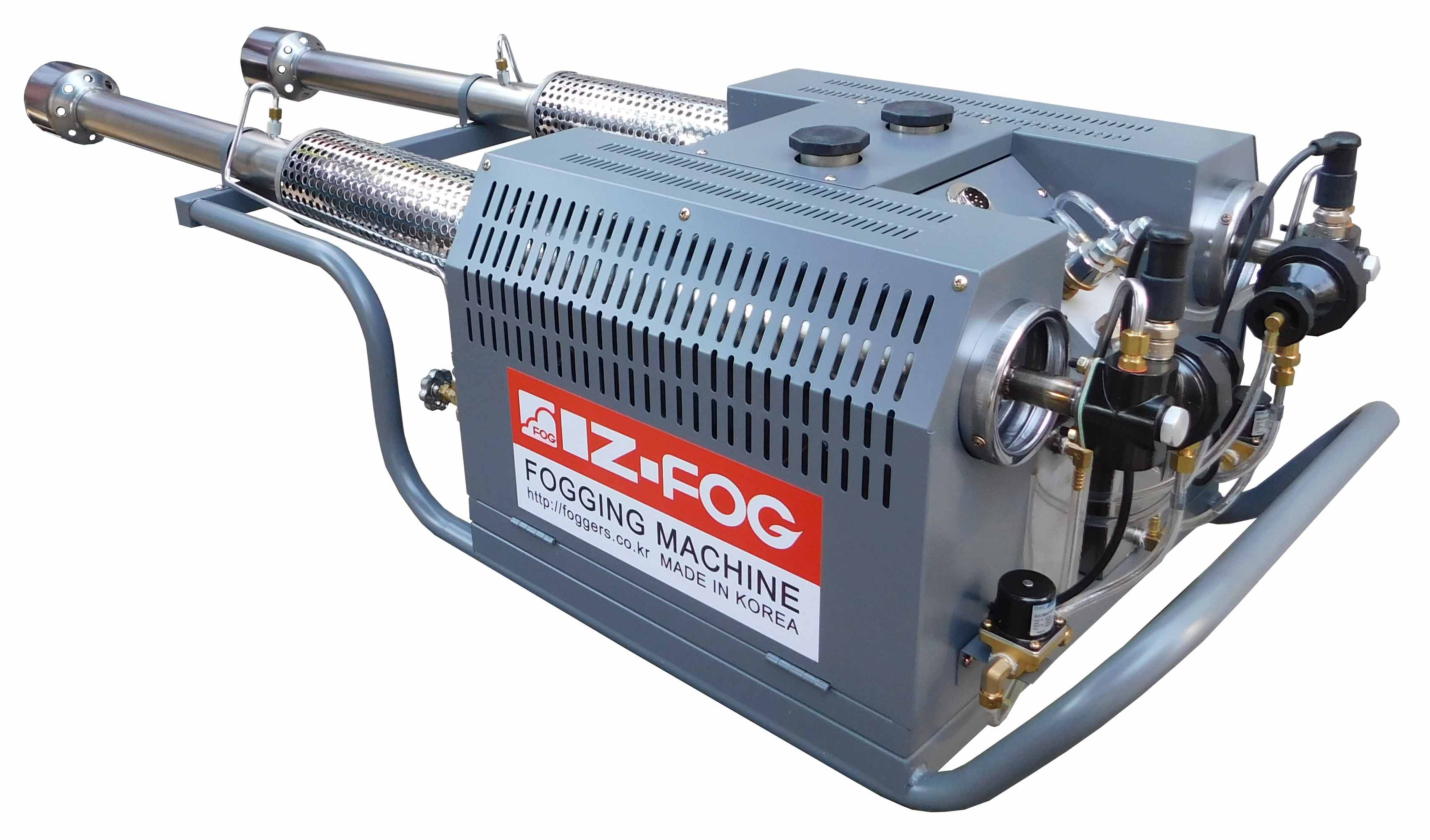

•Truck Mounted Thermal Fogger.
•Main Specifications:
Chemical tank capacity:140L.
Max. spouting quantity:200L/h.
Fuel tank capacity:7 L × 2.
Fuel consumption:4 L/h.
Spouting pipe:2 pcs.
Pressure gauge:2 kg/㎡.
Cooling system:Air-cooled.
Length:1,580 mm.
Width:510 mm.
Height:380 mm.
Weight:43 kg.
•Optional Item:
Turntable for adjusting spray angle.
IZ-400 body can be mounted on the turntable.
Operated via remote control, rotates 180 degrees.
•Product Features:
Double pulse jet engines.
Dual-purpose (Water or Oil based solution).
Remote control adjustable fogging direction (Turntable is optional).
Used to prevent Zika virus, Malaria, Dengue fever, and Yellow-fever transmitting mosquitoes.
Suitable for use in factories, public places, and residential areas.
•Caution Before Use:
Do not inject fuel or chemicals during operation or heating.
Always wear a mask when fogging toxic chemicals.
For outdoor spraying, operate under low pressure before and after sunset.
For indoor toxic chemical spraying, enter only after gas settles and ventilation is done.
Only fully trained personnel can operate the device.
If malfunction occurs, contact A/S center technician or a qualified technician.
•Instructions for Use:

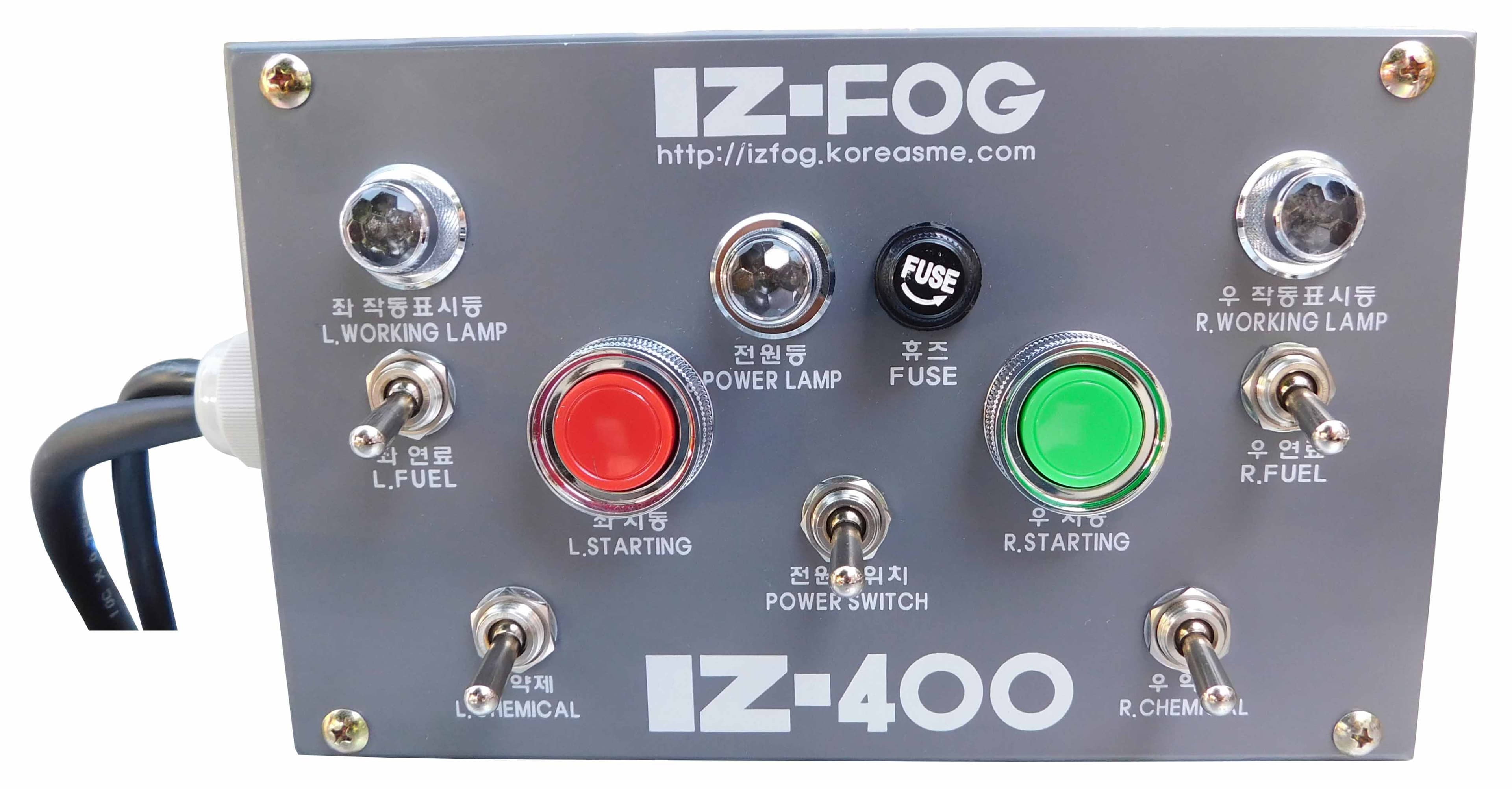

Connect machine + chemical tank + control box; connect control box to the car cigarette lighter.
Fill fuel and chemical tanks up to 80% of capacity.
To start the machine:
o Start the car engine
o Turn on the power switch
o Turn on the fuel switch
o Push the start switch → engine works
o If engine does not work:
Turn off the fuel switch
Push start switch several times
May cause ignition inside the fuel after switching on and pressing start
o When engine runs, turn off fuel switch without stopping engine
o Turn on chemical switch → spraying starts
To stop spraying:
o Turn off chemical switch.
o Stop spraying after turning off power switch.
o Remove air from chemical tank.
