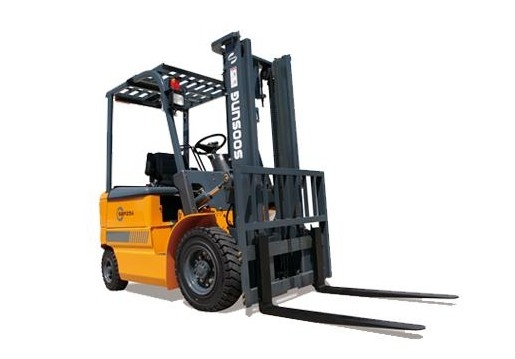

•Brand : SOOSUNG
•Model : SBF-15A
•With AC Drive motor, powerful acceleration in up- hill drive.
•Any signs will show to the operator to inform the statues of the vehicle.
Load Capacity:1500 kg.
Max. Lifting Height:3000 mm.
Tilting Angle:6º forward / 12º backward.
Free Lift:155 mm.
Lifting Speed (With / Without Load):270/450 mm/s.
Travel Speed (With / Without Load):16/15 km/h.
Outside Turning Radius:1930 mm.
Grade Clearance (Loaded):17%.
Overall Length with Fork:3200 mm.
Overall Width:1070 mm.
Overhead Guard Height:2160 mm.
Overall Height Mast Lowered:1995 mm.
Max. Mast Height:4030 mm.
Fork Length:35t × 100 × 1070 mm.
Load Distance:425 mm.
Wheel Base:1370 mm.
Tires (Front):6.5 - 10.
Tires (Rear):5 - 8.
Control (Drive/Hydraulic):MOSFET (CURTIS BRAND).
Motor Drive:8.0 (AC) kw.
Motor Hydraulic:7.5 (DC) kw.
Battery:48V 400Ah.
Battery Charger:phase- 3 × 220 / 380 / 400 v × 50/60 hz.
Length With Fork:3200 mm.
Overall Width:1070 mm.
Overhead Guard Height:2160 mm.
Lift Height:3000 mm.
Mast Lowered Height:1995 mm.
Mast Extended Height:4030 mm.
Free Lift:155 mm.
Backrest Height:1000 mm.
Mast Tilt Angle F/R:6° / 12°.
Ground Clearance:110 mm.
Wheel Base:1370 mm.
Tread (Front):890 mm.
Tread (Rear):920 mm.
Outside Turning Radius:1930 mm.
Load Distance:425 mm.
Rear Overhang:335 mm.
Fork Extended (Min./Max.):950-200 mm.
Fork Length:1070 mm.
Fork Width:100 mm.
Fork Thick:35 mm.
Connect Link High:335 mm.
Right Angle Store Aisle:1980 mm
Right Stack Aisle Width (Pallet Size 1000×1000, Clearance 200):3555 mm.
Right Stack Aisle Width (Pallet Size 1200×1200, Clearance 200):3755 mm.
Weight (Incl. Battery):3000 kg.
