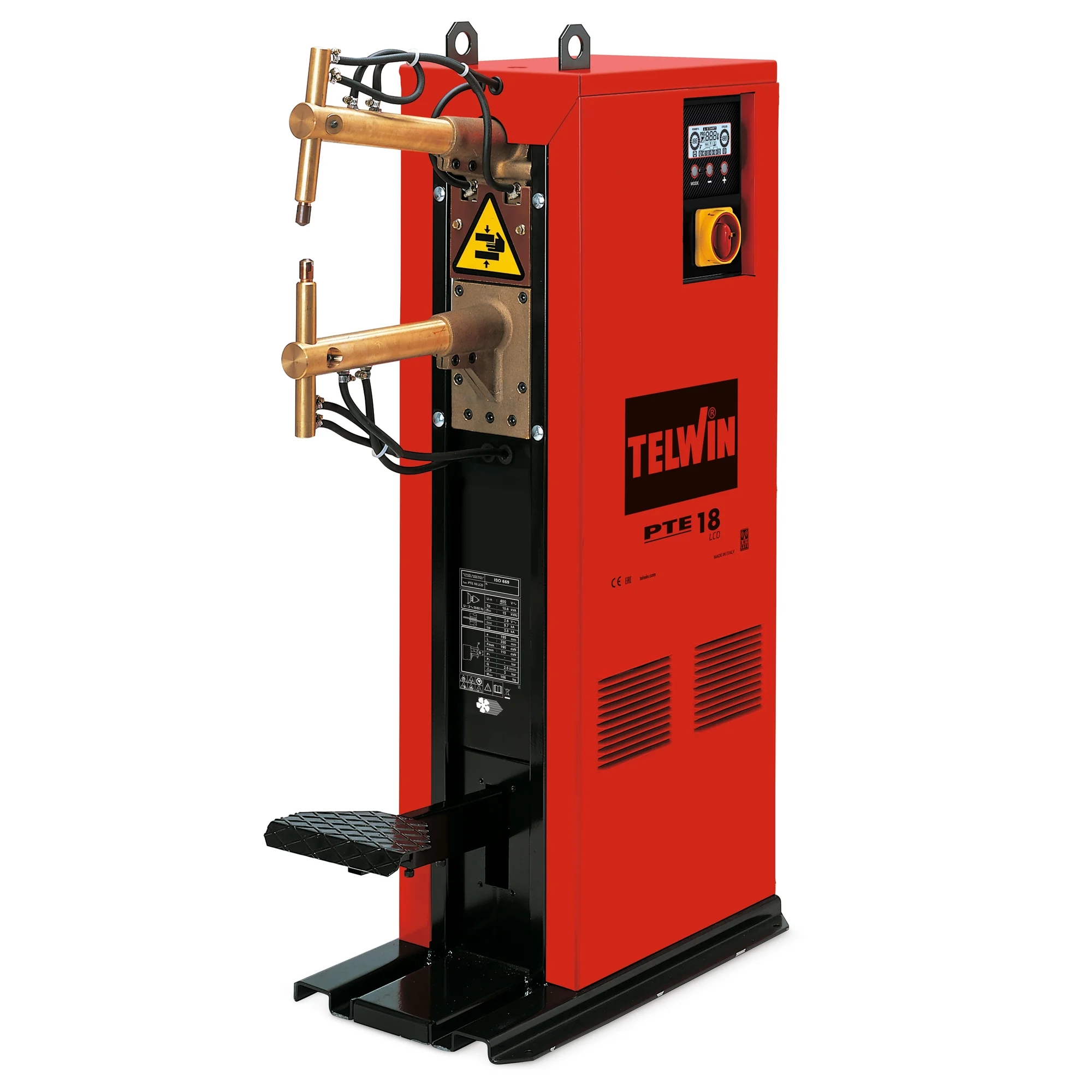

•Column resistance welding machine (spot welding machine) with movable arms with mechanical activation, with multi-functional LCD digital panel. •Continuous and pulse operation on steel, stainless steel and galvanized sheet metal.
•Possibility of working in EASY or EXPERT mode. •Up to 20 customizable spot-welding programs. •Adjustment of the spot-welding current (%), spot welding time (cycles), pressure and speed of electrodes closure and air flow adjustment for slowing arms closure.
•Choice of various spot-welding cycle parameters. •Requires liquid cooling of electrodes and arms. •DESCRIPTION:
•Column spot welding machine with movable arms, microprocessor digitally controlled.
•The digital, multifunction LCD control panel allows to operate in EASY mode (setting of spot-welding current and time); in EXPERT mode (setting of different spot-welding parameters) storing up to 20 customized programmed.
•It operates both in continuous and pulse mode and grants optimum results on different kinds of steel.
•Features: Adjustment of spot-welding current (%), time (cycles), force of electrodes compression; Choice of various parameters of the spot-welding cycle (approach, slope, welding and pause time and pulse number); Easy to read LCD display; Mechanical pedal control; Thermal protection with indicator.
•The model requires water cooling for electrodes and arms.
